Flexible Isolator for Research
A mobile and flexible SAS / AirSAS
Capes / bellows
bags and glove bags
bags / tunnel sleeves / sheath
1
Isolators
Materials
• PVC Crystal
Our strengths
+ quick and easy implementation
+ flexibility in use and handling, compatible and adaptable to any installation
+ effective barrier against pollutants and contaminants
+ compatible with cleaning agents and surface decontamination

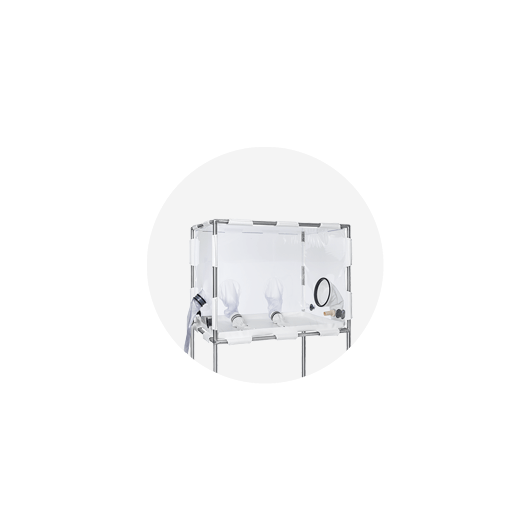

Piercan Tech’s flexible isolators fit comfortably in tight spaces within a controlled atmosphere. They can be connected to other containment devices and are interchangeable on new and existing installations. They are available with or without structures and accessories.
Flexible isolator: It is a working enclosure with flexible and transparent walls, which offers a panoramic view of the working area. Ideal when protection against materials, sensitizers or chemical compounds is required, it provides respiratory and skin protection.
Intervention glove box: It is a multifunctional flexible wall insulator made of high quality engineered plastic films. Assembled in a few minutes, it can be used anywhere. Transportable and lightweight, it can meet many needs in the laboratory or on site, in the nuclear or medical fields.
2
Flexible Isolator for Research
Materials
• PVC Crystal
Our strengths
+ quick and easy installation and
implementation
+ a wide choice of options, adaptable to your needs and customized
+ flexibility in use and handling, compatible and adaptable to any installation
+ effective barrier against pollutants and contaminants
+ compatible with cleaning agents and surface decontamination

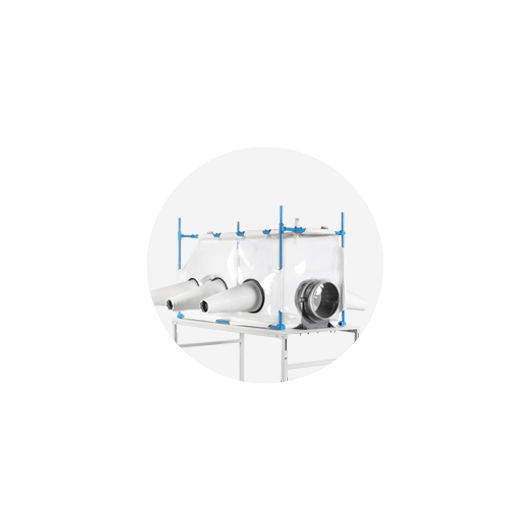

Designed specifically for biomedical research and animal containment, the Piercan flexible isolator guarantees airtight spaces of intervention with a controlled atmosphere. Compared to the rigid isolator, it offers both a great comfort of use thanks to the flexible PVC material and also an economic advantage. It is interchangeable on new or existing installations and can be connected to other containment devices.
Flexible Isolator for Research: for the biomedical and veterinary fields of application, PiercanTech offers a wide range of modular and ergonomic isolators that guarantee the quality of the airtight intervention spaces, the protection of animals, products or operators.
3
A Mobile and Flexible SAS / AirSAS
Materials
• PVC
• PVC Crystal
Our strengths
+ simple and quick installation
+ inflation time: 5 minutes
+ easy to carry everywhere thanks to the carrying case
+ lightweight and great flexibility in use and handling
+ effective barrier against pollutants and contaminants
+ compatible with cleaning and decontamination agents of surface

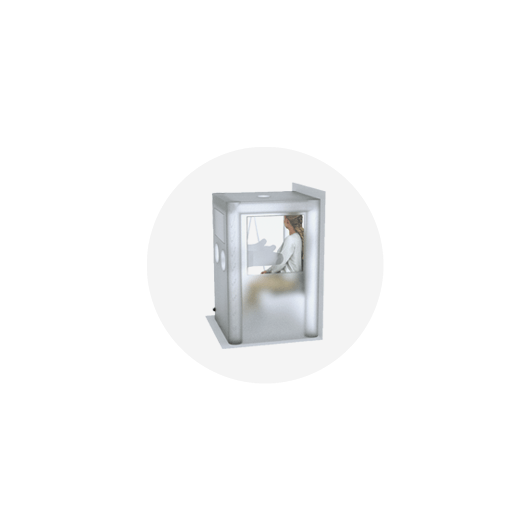

The structure is fully inflatable and the walls in calendered PVC Crystal guarantee perfect transparency even in daylight. Quick and easy installation and implementation even in the tight space. Great flexibility in use and manipulation, compatible and adaptable to any installation. Effective barrier against pollutants and contaminants. A carrying case and an inflator are included with the SAS. AirSAS can be made in many shapes and accessories to fit your specific needs.
AirSAS / Vertical model for people in standing position. The standing person models can be used for a wide range of purposes. Hospital, nuclear or military environment, and even be assembled together to create decontamination units.
AirSAS / Vertical model for people in a sitting position. The seated models are particularly suitable for the rail and air transport sectors.
4
Capes / Bellows
Materials
• PVC
• Crystal PVC
Our strengths
+ versatile accessories:
•decontamination SAS entry / exit
• round glove shutter
+ compatible with surface cleaning and decontamination agents

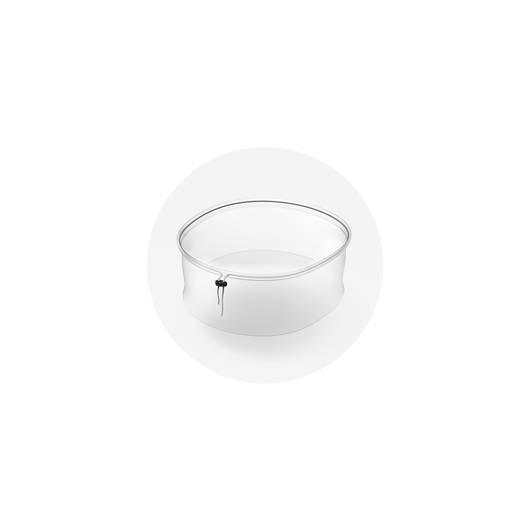

Capes and bellows are soft accessories used primarily on isolators to plug entrances or serve as a link between two containment units. These soft accessories are made of quality engineered plastic sheets, calendered and crystal. Different types of plastic sheets can be used: crystal PVC (ep.0.3 to 0.48mm), white PVC (ep.0.5 to 0.75mm) and azure translucent PVC (ep.0.3 to 0.5mm).
Capes: There are four types of capes:cape without flange, cape without flange with seal, cape with flange, cape with flange and gasket. The cape with flange can be equipped with fixing eyelets. All capes can be equipped with soft or rigid accessories.
Connecting bellows: Variable number of teeth (on request).
55
Half-Suits
Materials
• Light fabric
• Heavy fabric
Our strengths
+ great flexibility in uses and manipulations
+ effective barrier against pollutants and contaminants
+ protection of operators, safety of preparations and installations
+ compatible with cleaning agents and surface decontamination
Options
• Two sizes available (large and small)
• Single fabric or PVC lined fabric
• Different colors

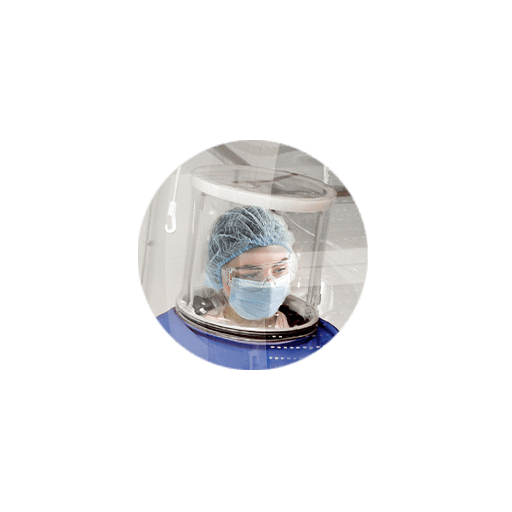

The Half-Suit is the extension of the glove-sleeve concept applied to the upper body. This system offers a large area of operation that allows the user to have control of his/her movements. All models are doubled for ventilation.
Interchangeable helmet: good optical quality of the visor, 180 degree field of vision, prolonged use of the half suit.
Welded helmet: two front and back visors (for production isolators), good optical quality of the visor, 180 degree field of vision.
6
Sleeves
Materials
• Light fabric
• Heavy fabric
• PVC
Our strengths
+ great flexibility in use
and handling
+ effective barrier against pollutants and contaminants
+ protection of operators, safety of preparations and installations
+ compatible with cleaning agents and surface decontamination
Options
• Two categories of materials: calendered PVC (translucent or transparent) and coated fabrics (different colors)
• Different shapes (straight conical, oblique conical or ovoid)
• Different sizes, lengths and diameters

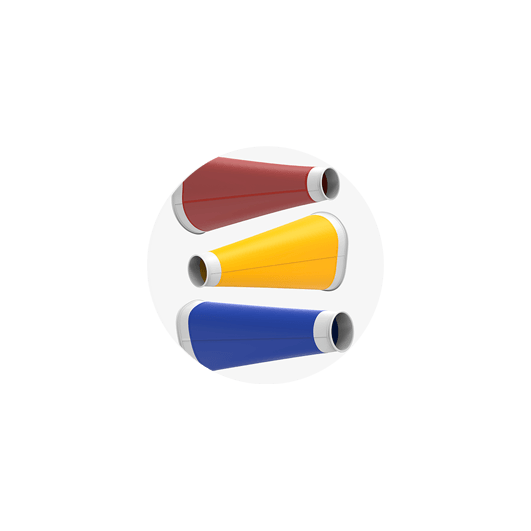

The sleeve systems are key to the process of handling inside the isolator and offer the operator ideal ergonomics and freedom of movement.
The combination of a sleeve and glove can be replaced without compromising containment thanks to the "wrist ring with O-ring" connection interface. Our sleeves are available in different materials and sizes.
7
Bags and Glove Bags
Materials
• PVC
• Crystal PVC
• PUR
Our strengths
+ mastered and validated
+ compatible and adaptable to many solutions for pollution control, asbestos removal and deconstruction
+ protection of operators, safety of preparations

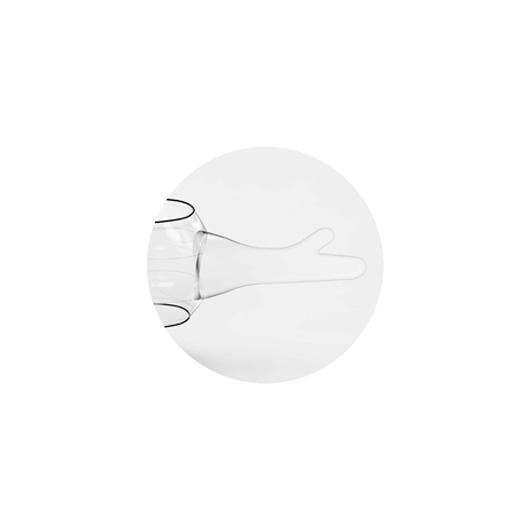

This equipment is used in specific situations, such as, difficult maintenance on installations, sanitation sites and decommissioning (nuclear, maritime and fossil energy sectors).
This equipment is designed through concepts and scenarios provided by our customers. The materials used are often high-performance noble materials (fluorinated polyvinyl, multilayer, polyurethane). They are compatible with technical parts and may be used as integral parts of the products (bellows, partitions penetrations, gloves, mittens, fl anges, airlock, filters).
8
Bags / Tunnel sleeves / Sheath
Materials
• All PVC
• PUR
Our strengths
+ great flexibility in use
and manipulations, adaptable to all equipment
+ effective barrier against pollutants and contaminants
+ operator protection
+ environmental protection

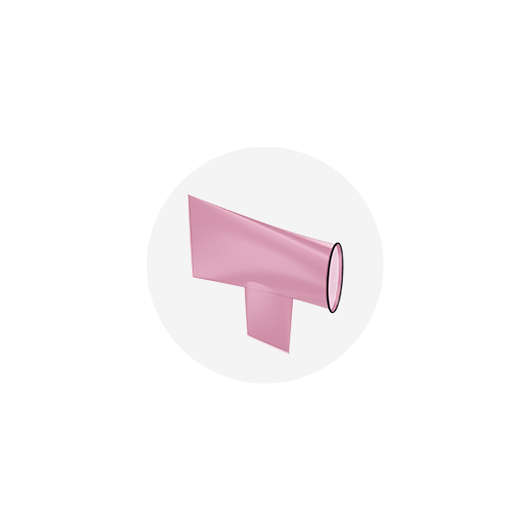

Accessories that are flexible or weldable plastics. They can be used for the storage and transfer of materials and substances from a clean environment to a difficult one, or vice versa.
Bags. Plastunion offers a wide range of bags:
• bags for analysis (sampling of gas and feces).
• garbage bags.
• transfer bags used for storing and transferring objects from one environment to another.
• filter bags used to change and store contaminated filters.
Sheath serve as double protection. They are wound on a cardboard roll (70 mm inside diameter).
Tunnel sleeves may have one or two O-rings.
